300A Bus Bars Heavy Duty Module Design Power Distribution Block Busbar Box with 4X M8(5/16") Terminal Studs (Black)
Product details
| Management number | 215151507 | Release Date | 2026/04/12 | List Price | US$16.00 | Model Number | 215151507 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

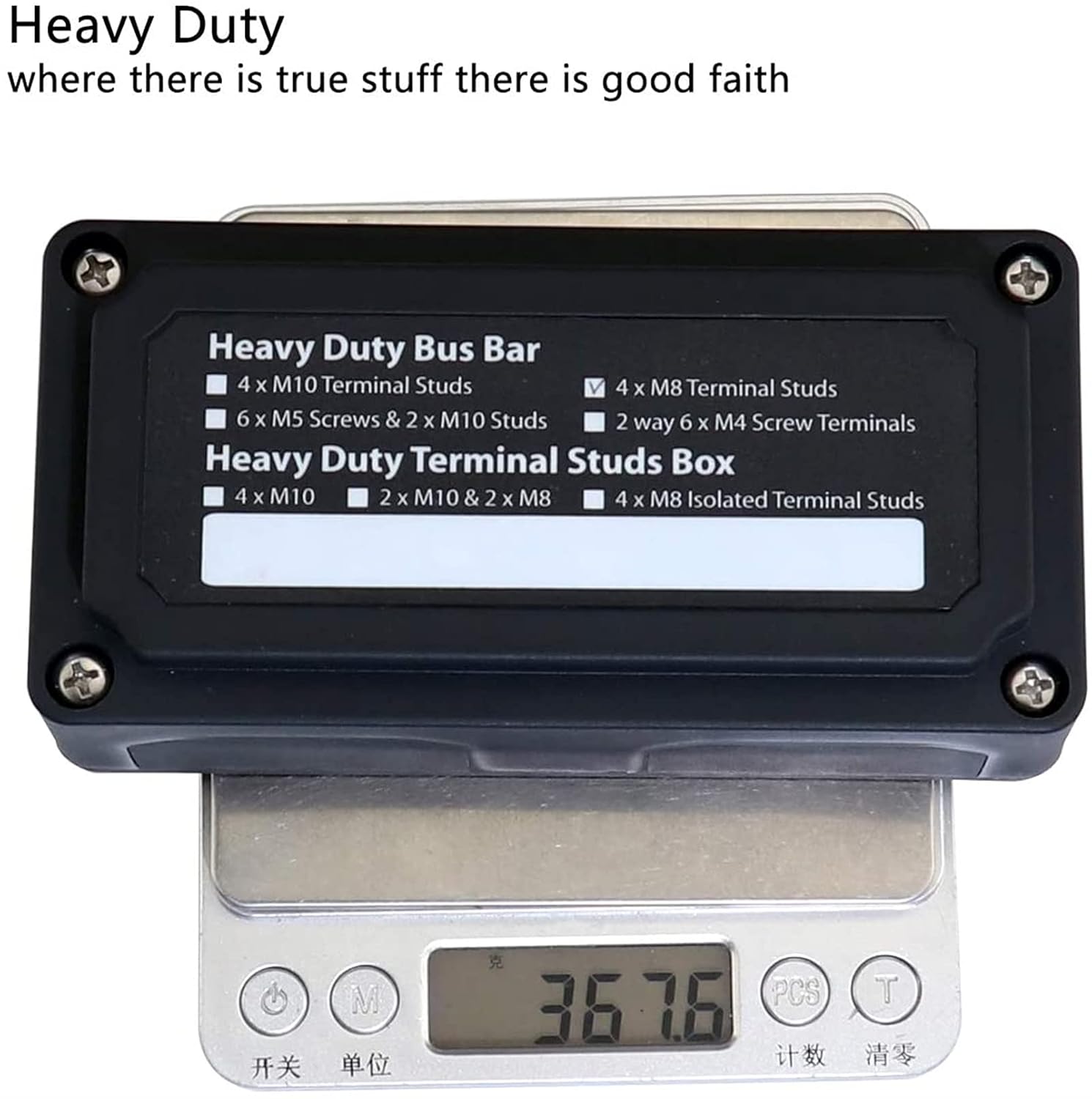

Specifications: Bus Material: Brass, Nickel plated Base & Cover Material: Nylon, Glass Fiber reinforced Max Operating Voltage: DC 48V Max Amp per circuit: Determined by wires connected Terminal Stud Size: 4*M8 (5/16") Size: 13.5*7*5cm / 5.31*2.75*1.97in Product Weight: 369g / 13.01oz Package Size: 13.5*7*5cm / 5.31*2.75*1.97in Package Weight: 374g / 13.19oz Use Instructions: The middle M8 is connected to the negative pole of the device, and the M8 at both ends is connected to the negative pole of the battery; a small current is collected from each device, such as 3A 5A 10A 8A... A thick wire is integrated to connect a large current to the battery in the range of 150A. Package List: 4 * Studs 4 * Screws 1 * Distribution Box
- 300A High Current:the product can withstand the maximum current 300A,the maximum voltage DC 48v, a wide range of applications,vehicles and ships.
- Modular box design：The modular box design is more convenient to summarize and organize,and reasonably store the lines inside the vehicle and ship

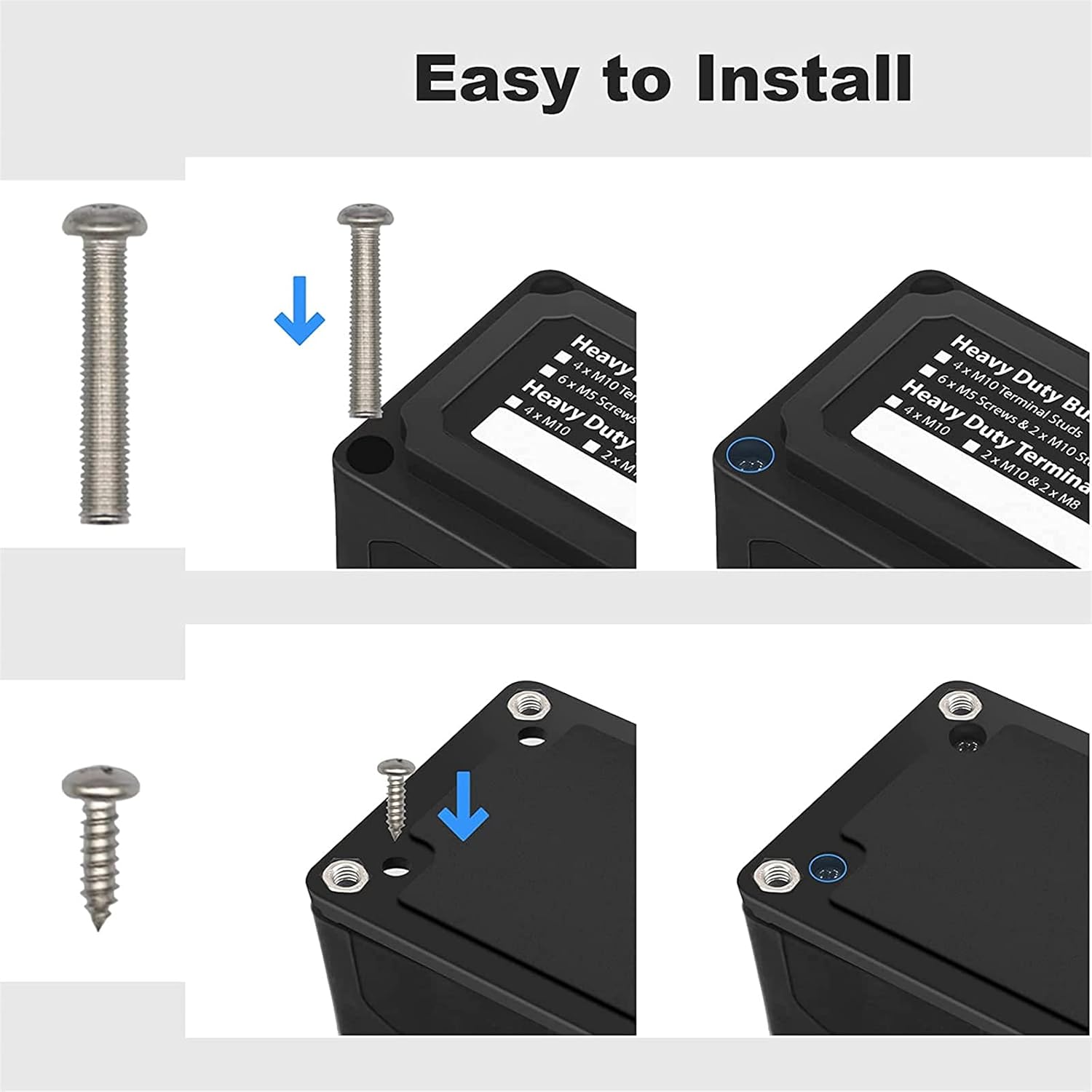

- Removable window design: 4 studs (5/16"), Removable windows for unobstructed wiring.
- Good flame resistance：The use of glass fiber reinforced nylon base and shell to ensure high mechanical strength and durability, with good flame resistance.
- Widely applied to 12-48V car, trucks, RV, marine, boat power systems.
| UPC | 799748851837 |
|---|---|
| Color | Black |
| Gauge | 1.0 |
| Brand Name | GZCRDZ |
| Part Number | F3607 |
| Manufacturer | China |
| Connector Type | Clamp |
| Specification Met | FCC |
| Number Of Contacts | 4 |
| Included Components | 4 * Studs 4 * Screws 1 * Distribution Box |
